An overview of flight types
Flight types determine how the material to be conveyed is picked up, transported, and discharged. That is why Branscheid offers a wide variety of different flight types for single-strand chains — tailored to the material being conveyed, the system design, and the operating conditions. Whether bulk materials, chips, biomass, or other materials: Each design is engineered for maximum conveying capacity, low wear, and reliable operation.

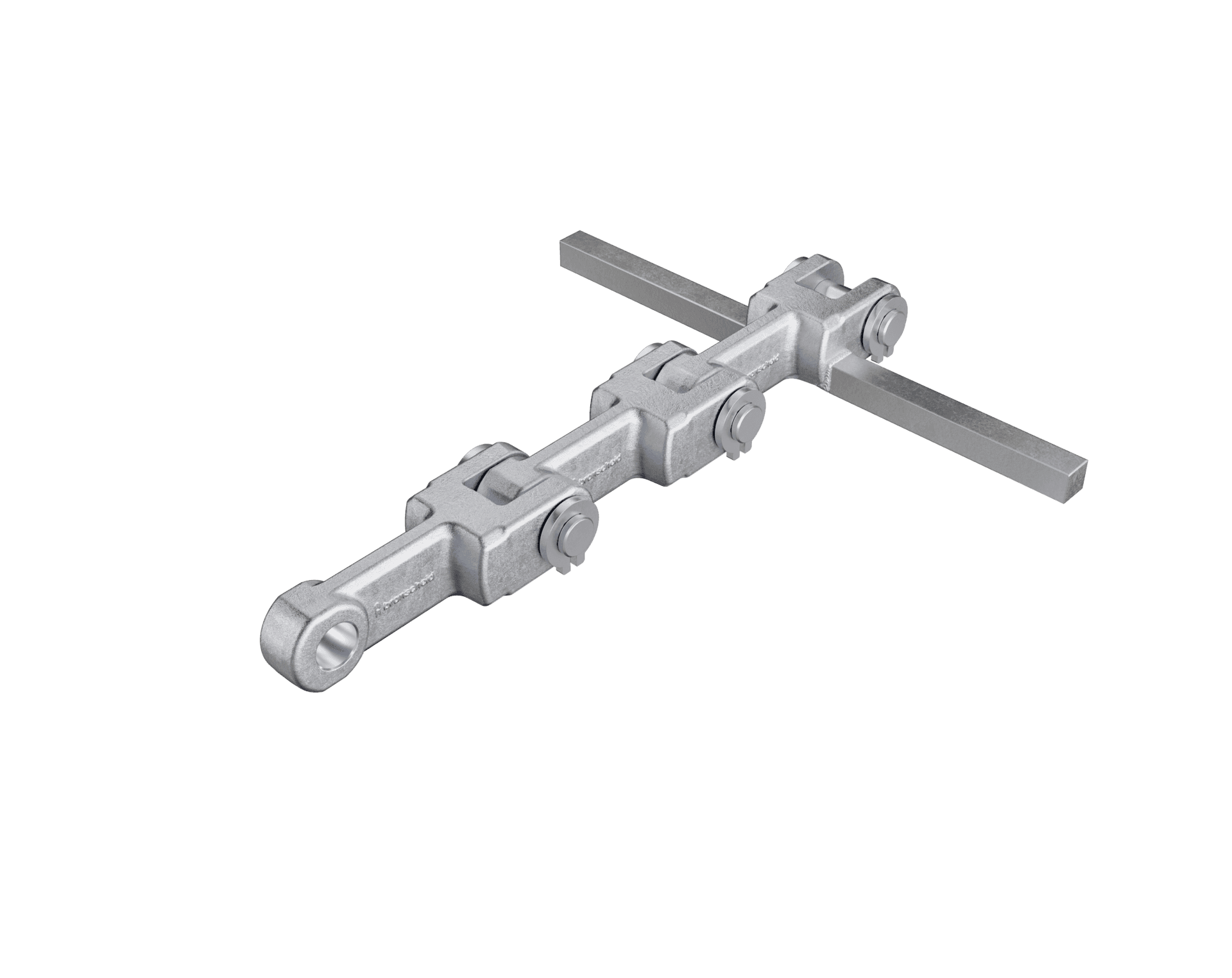

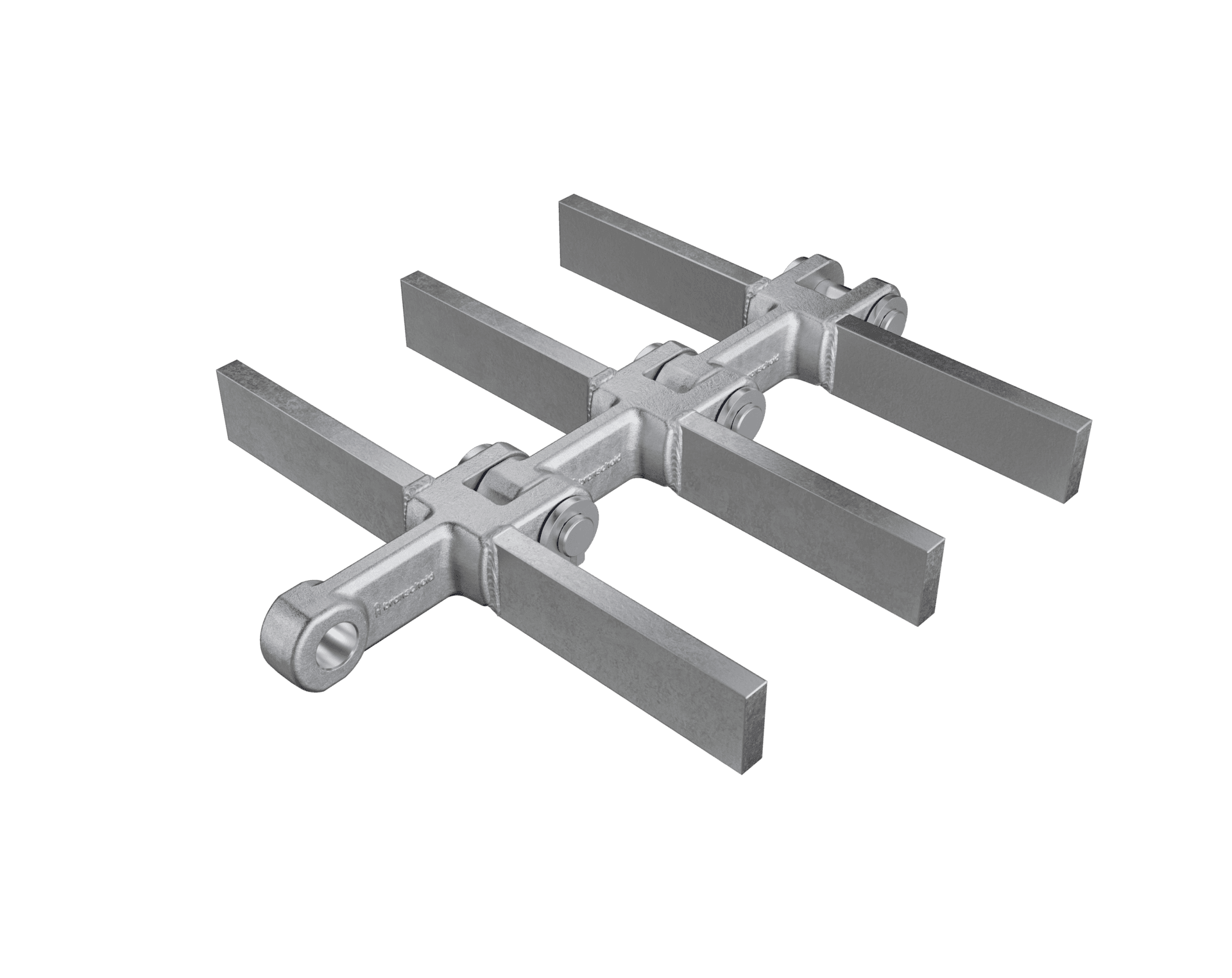

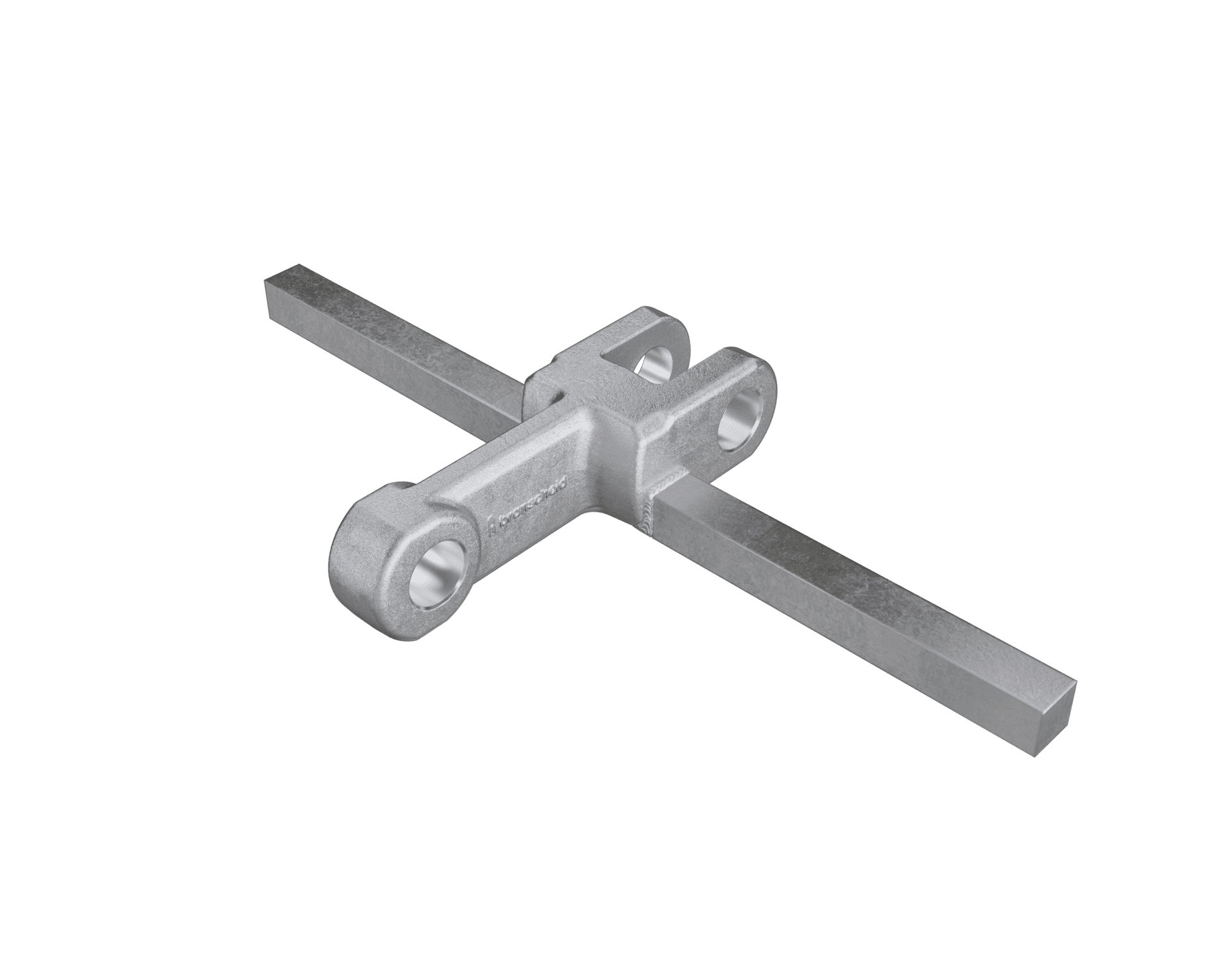

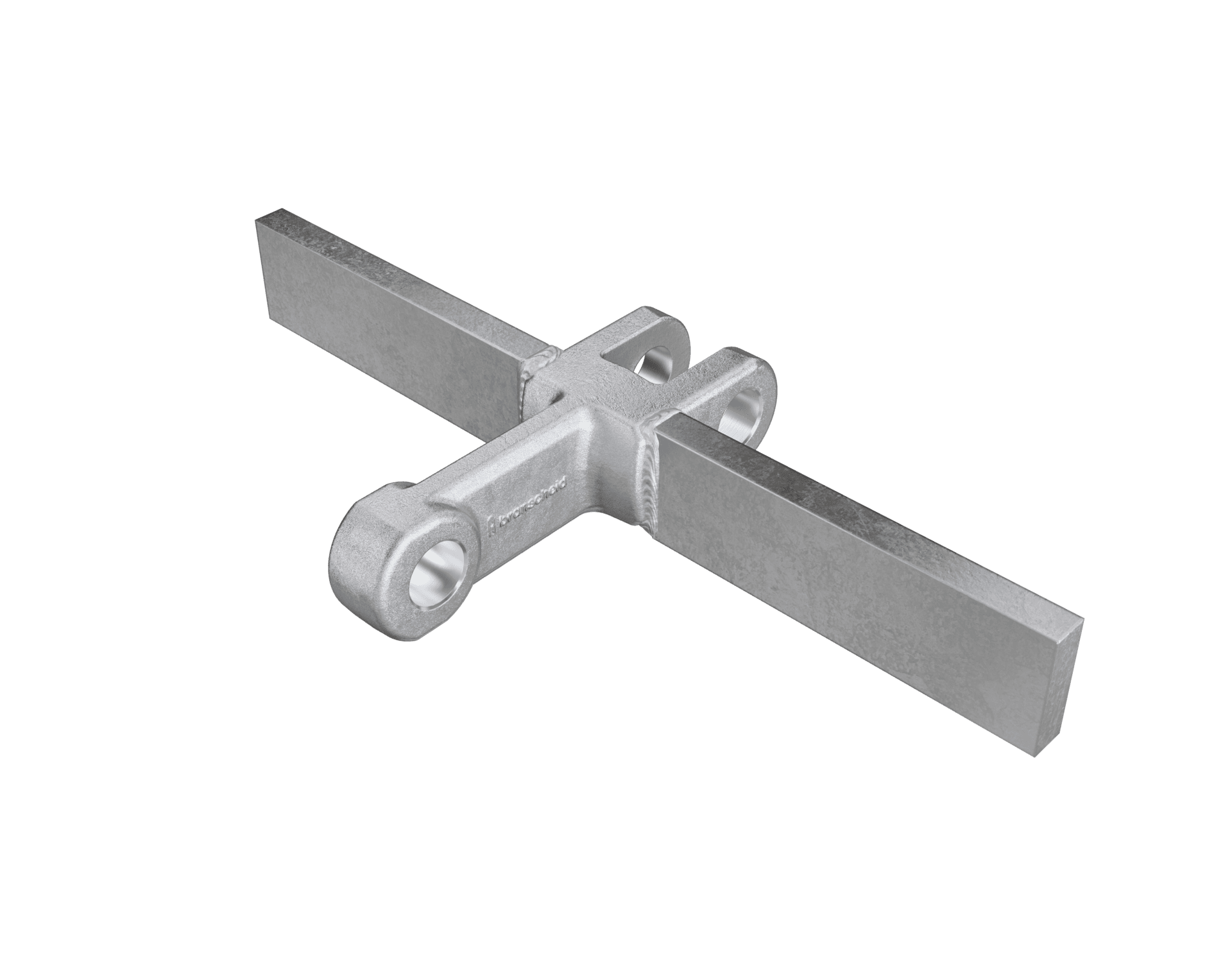

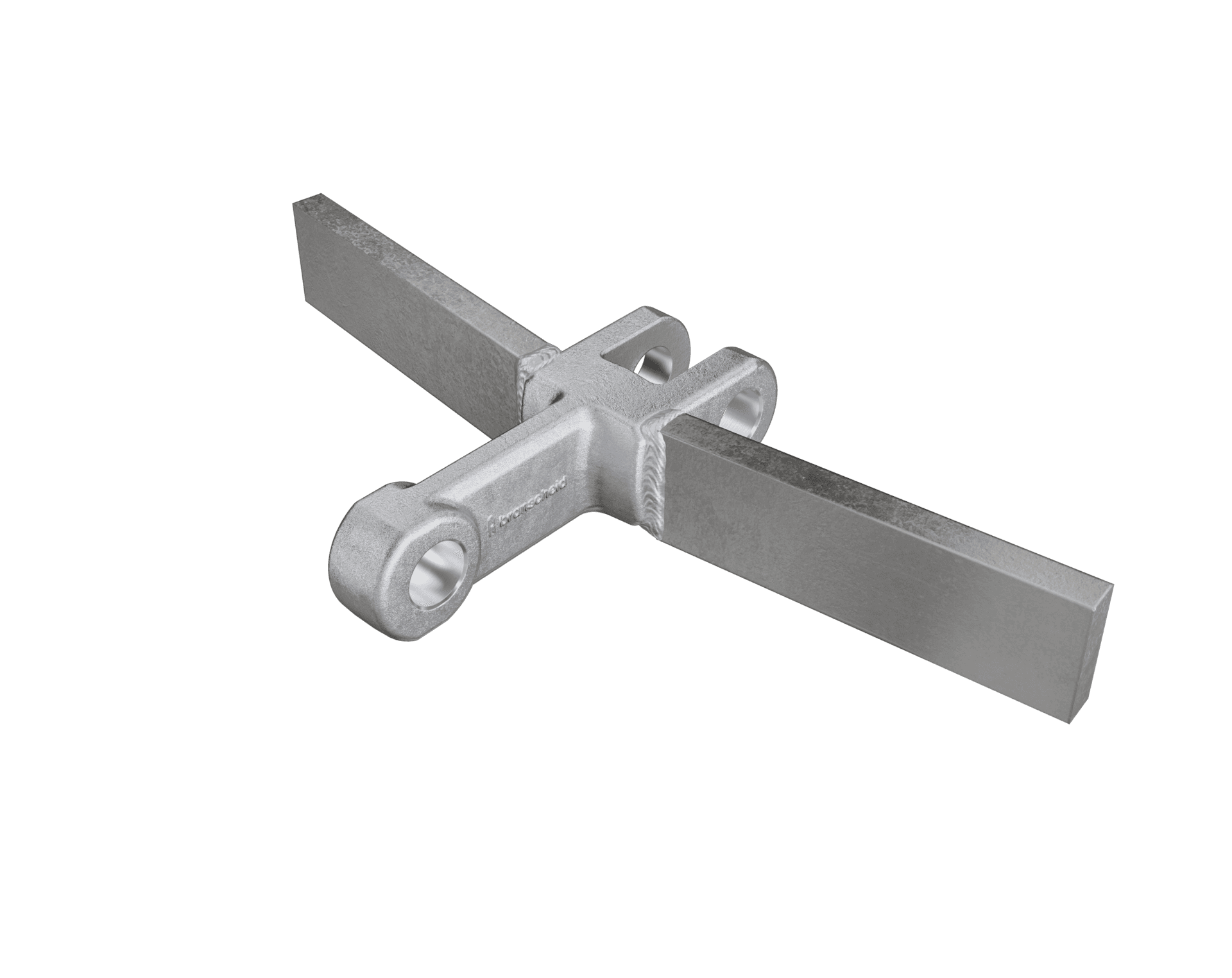

Flight type T-form
Application: Scraper chain for horizontal conveying
Materials to be conveyed: Ash, powder, dust, and other small-particle materials

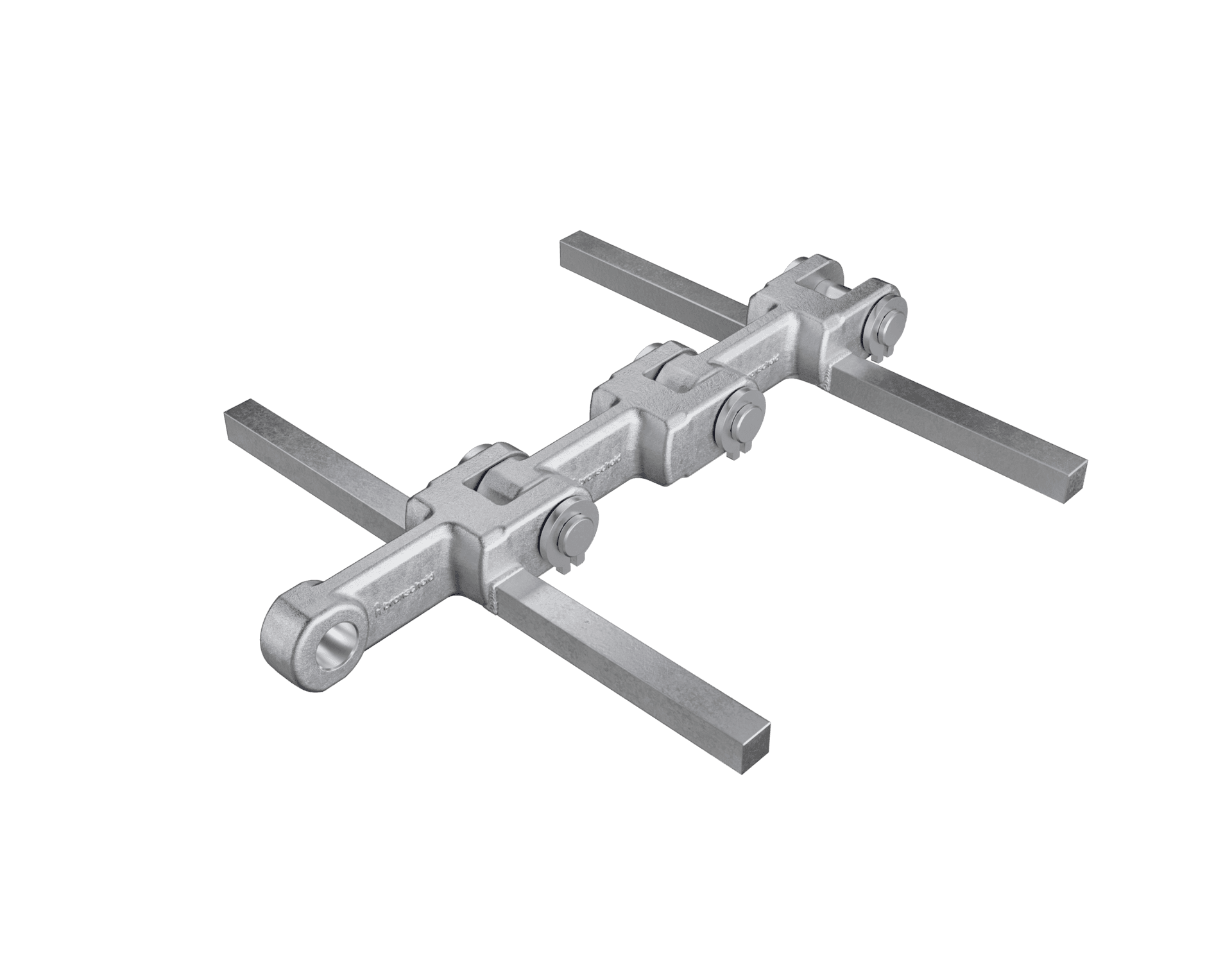

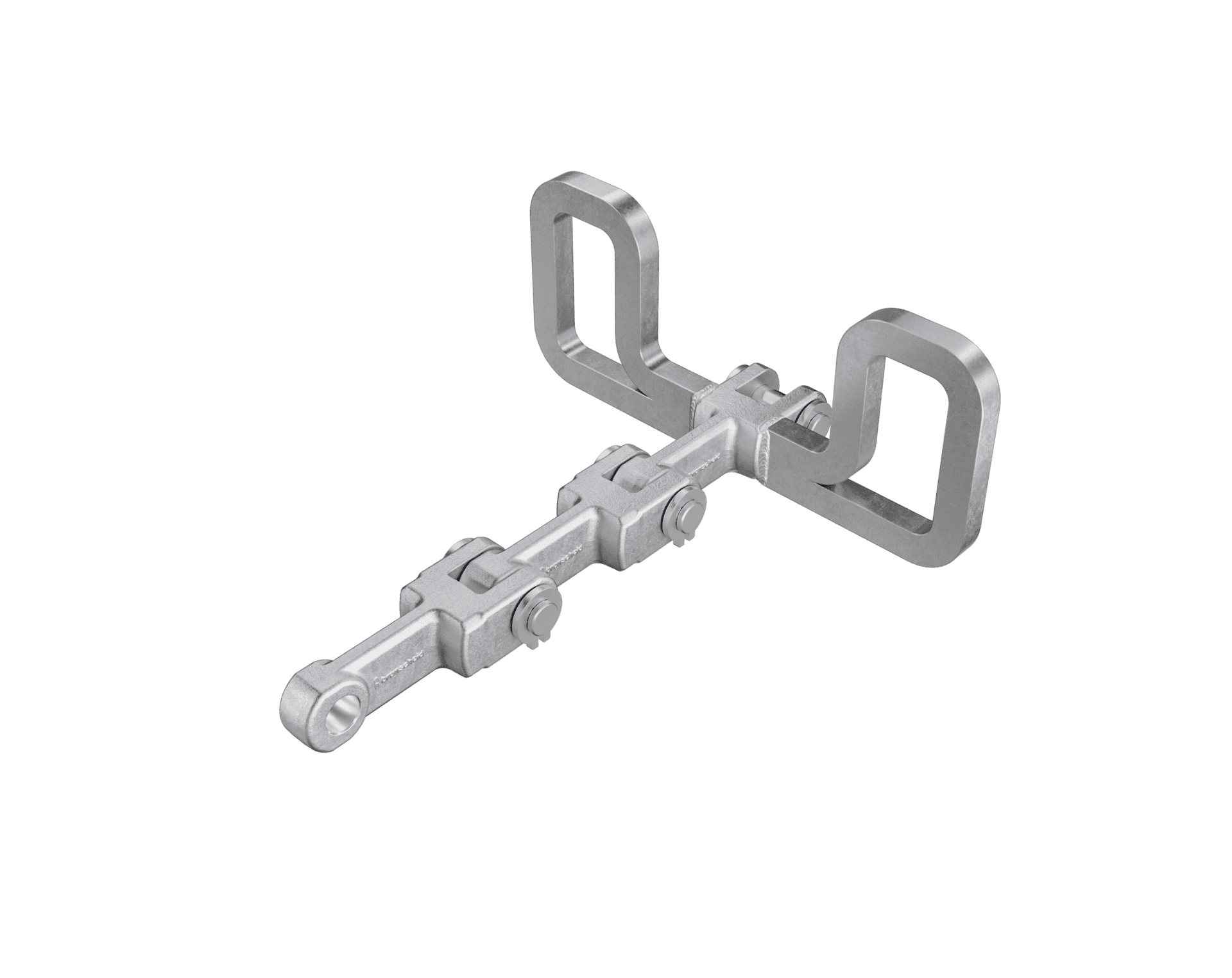

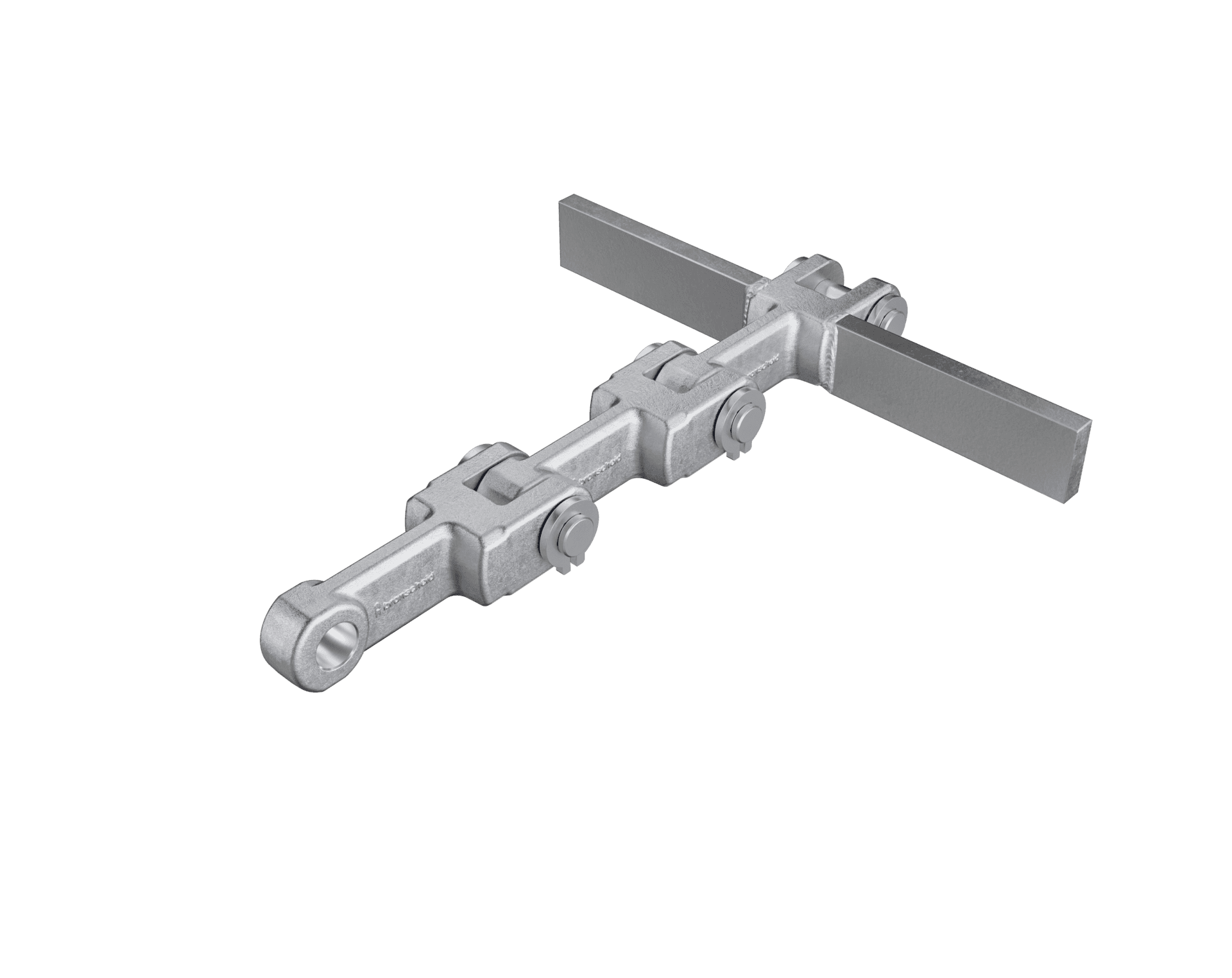

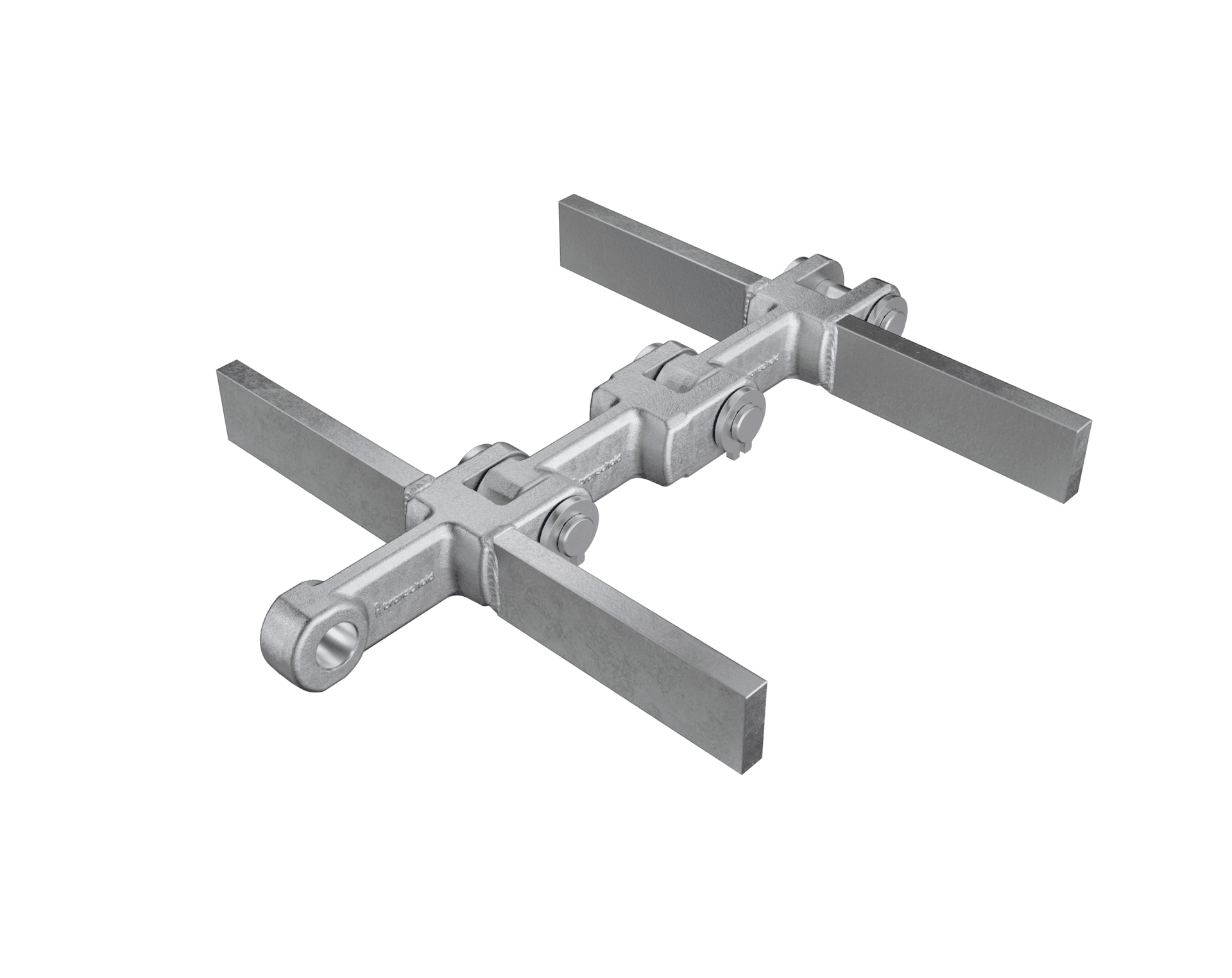

Flight type BT-form
Application: Scraper conveyor for horizontal transport
Materials Handled: Ash, glass, powder, dust, and other small-particle materials

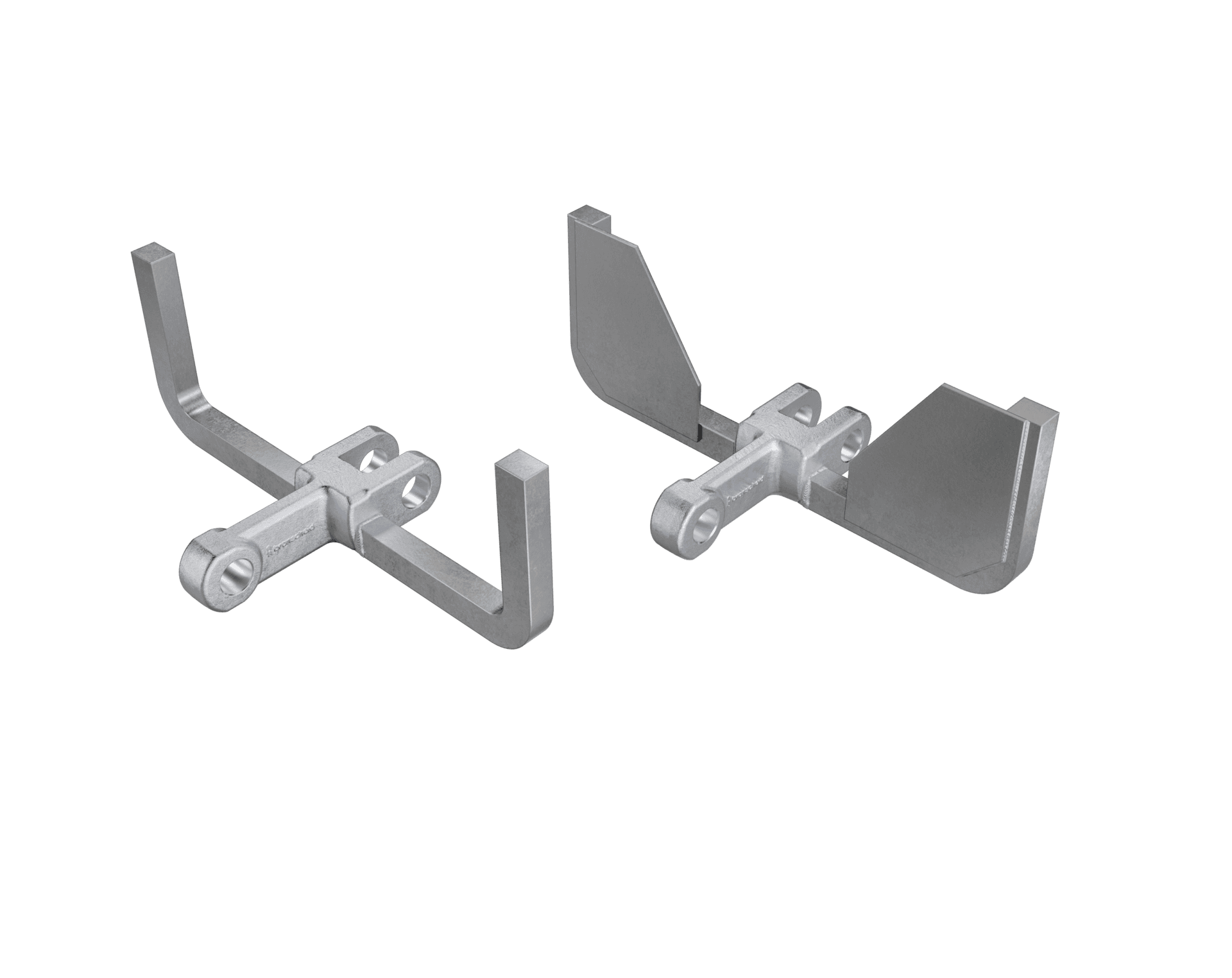

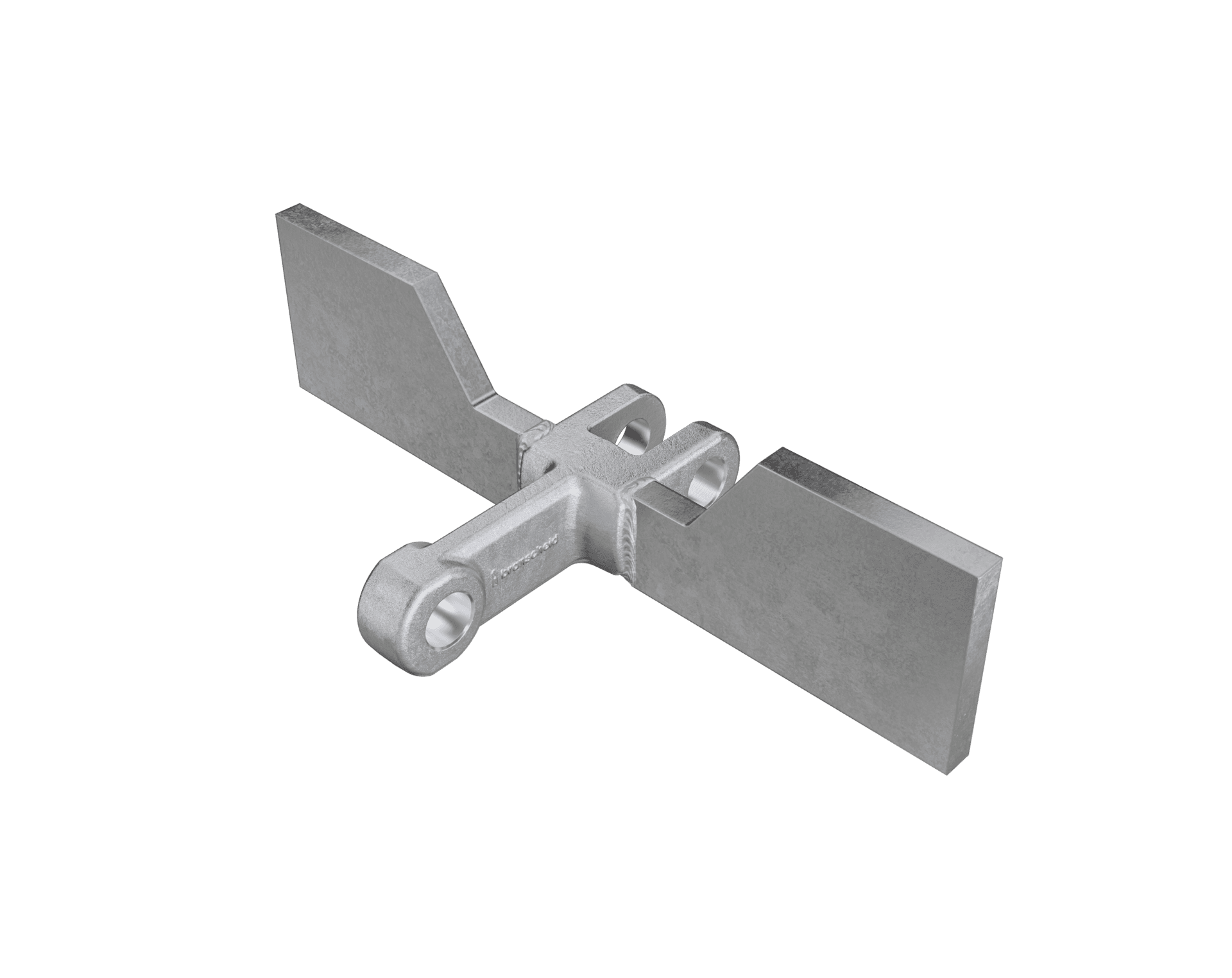

Flight type BT-form, inclined
Application: Horizontal, inclined, and vertical conveying
Materials to be conveyed: Glass, bulky materials, wood chips, plastic
Flight type BT-form, elevated
Application: Horizontal, inclined, and vertical conveying
Materials to be conveyed: Glass, bulky materials, wood chips, plastic

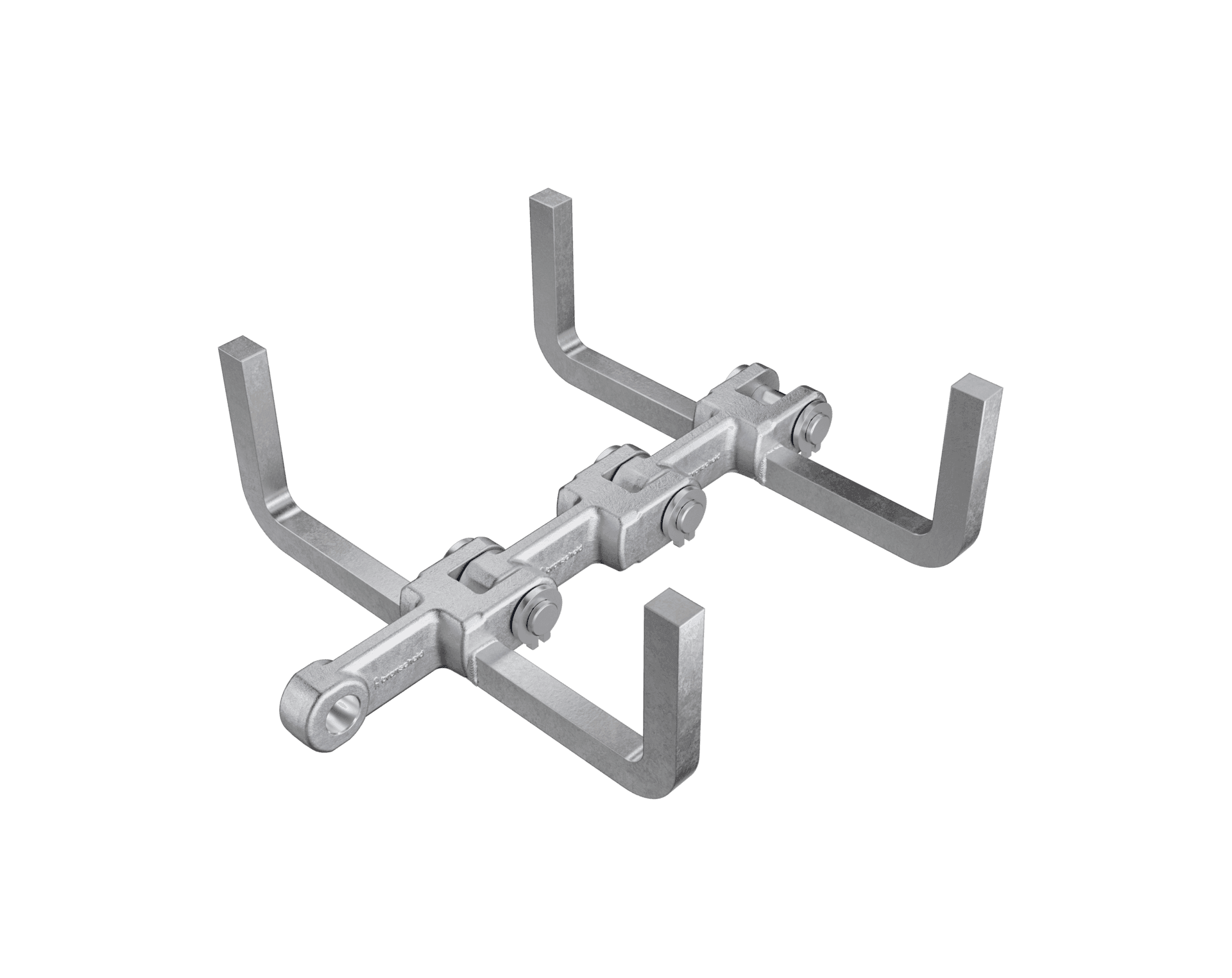

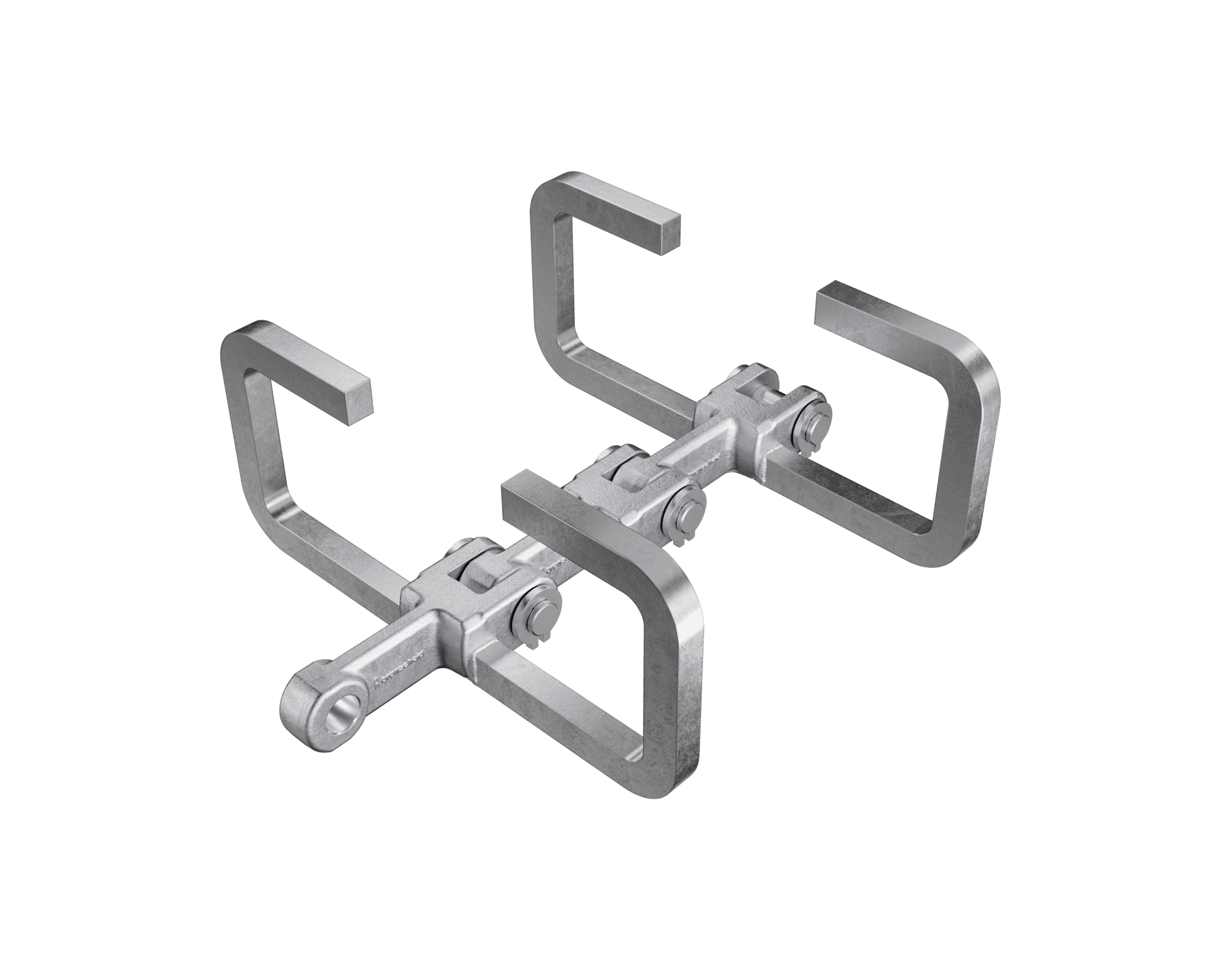

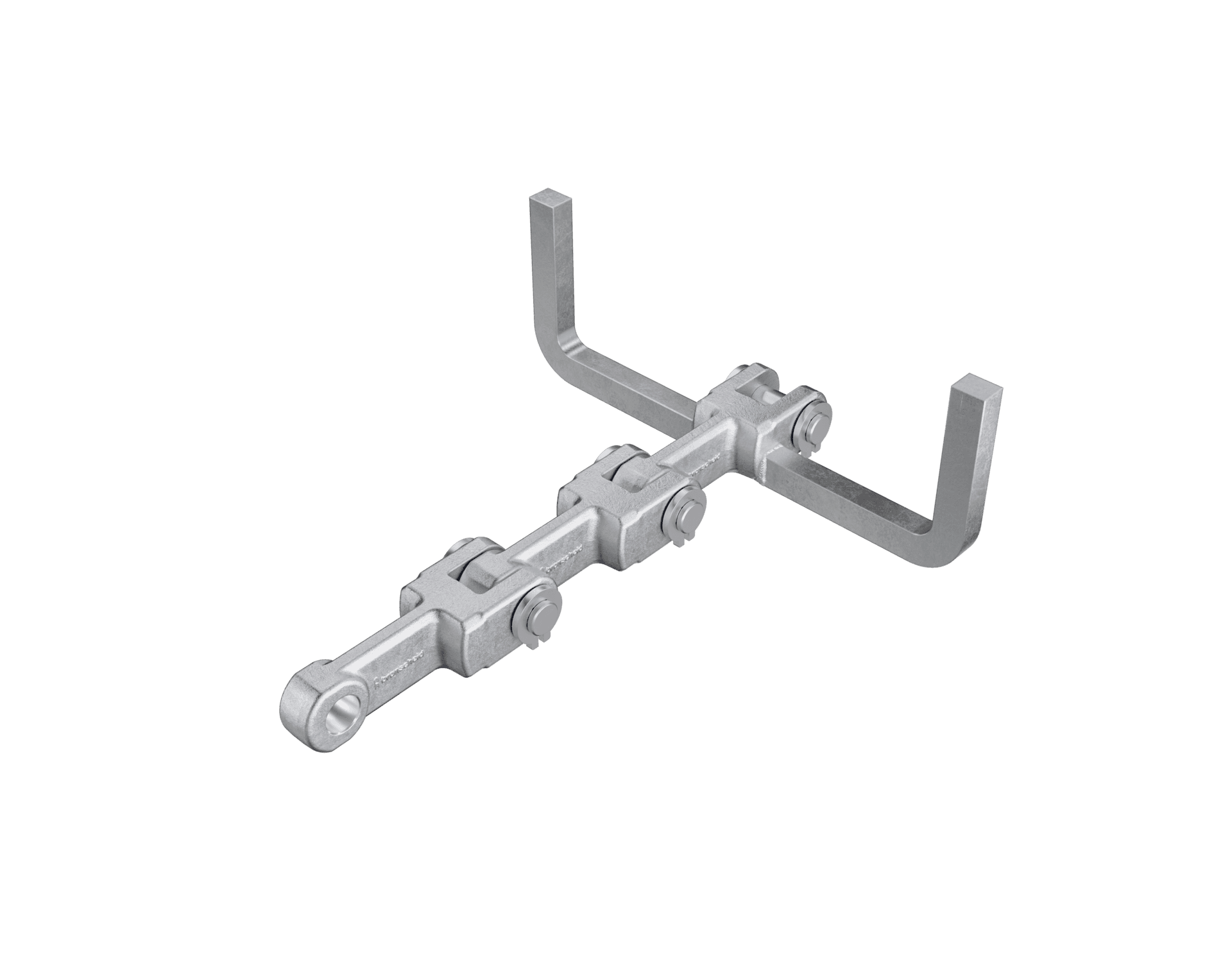

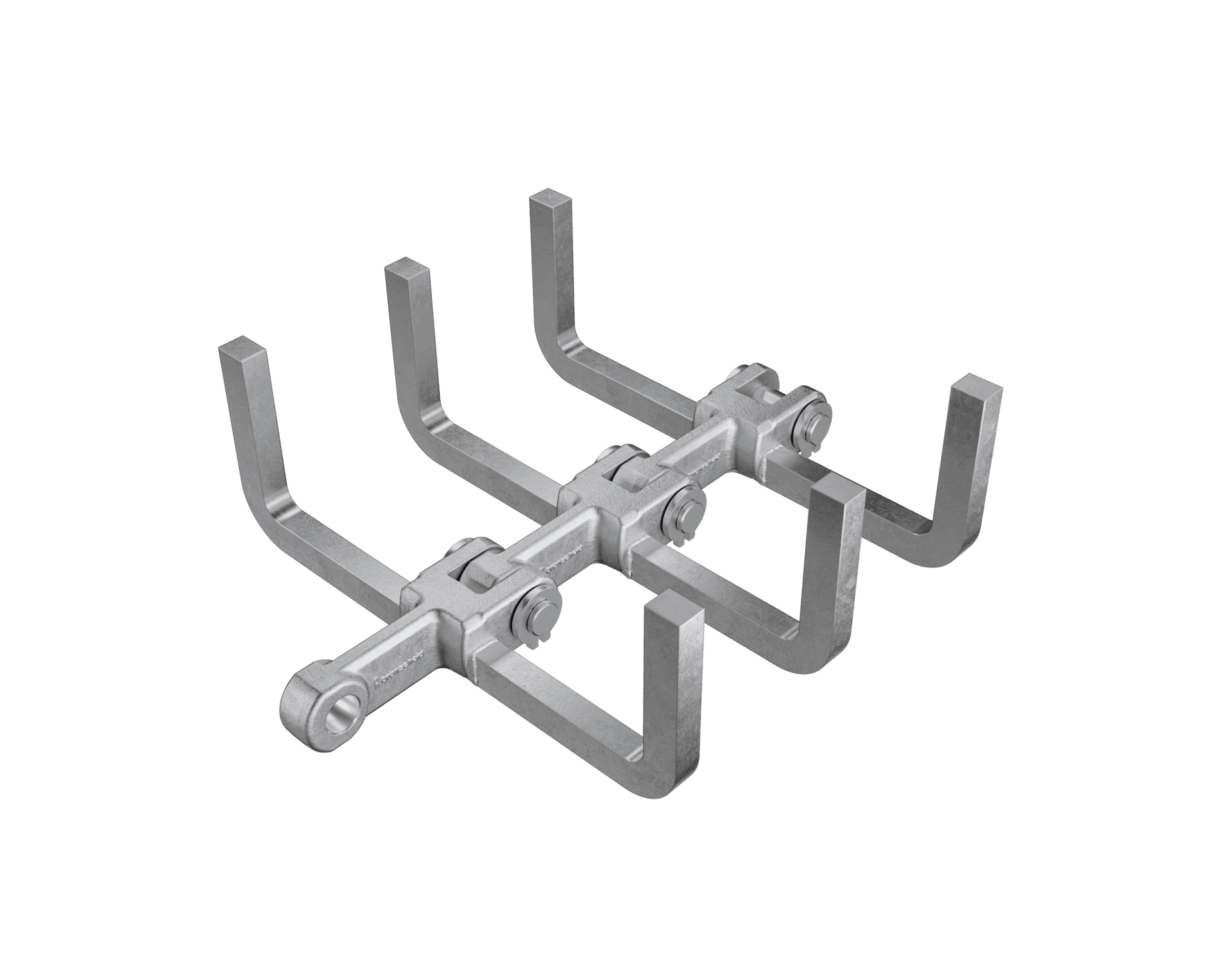

Flight type U / UFL-form
With and without a filler plate
Application: Scraper conveyor for horizontal/vertical conveying
Materials to be conveyed: Waste, ash, wood chips, wood shavings, powder, dust, and other small-particle materials

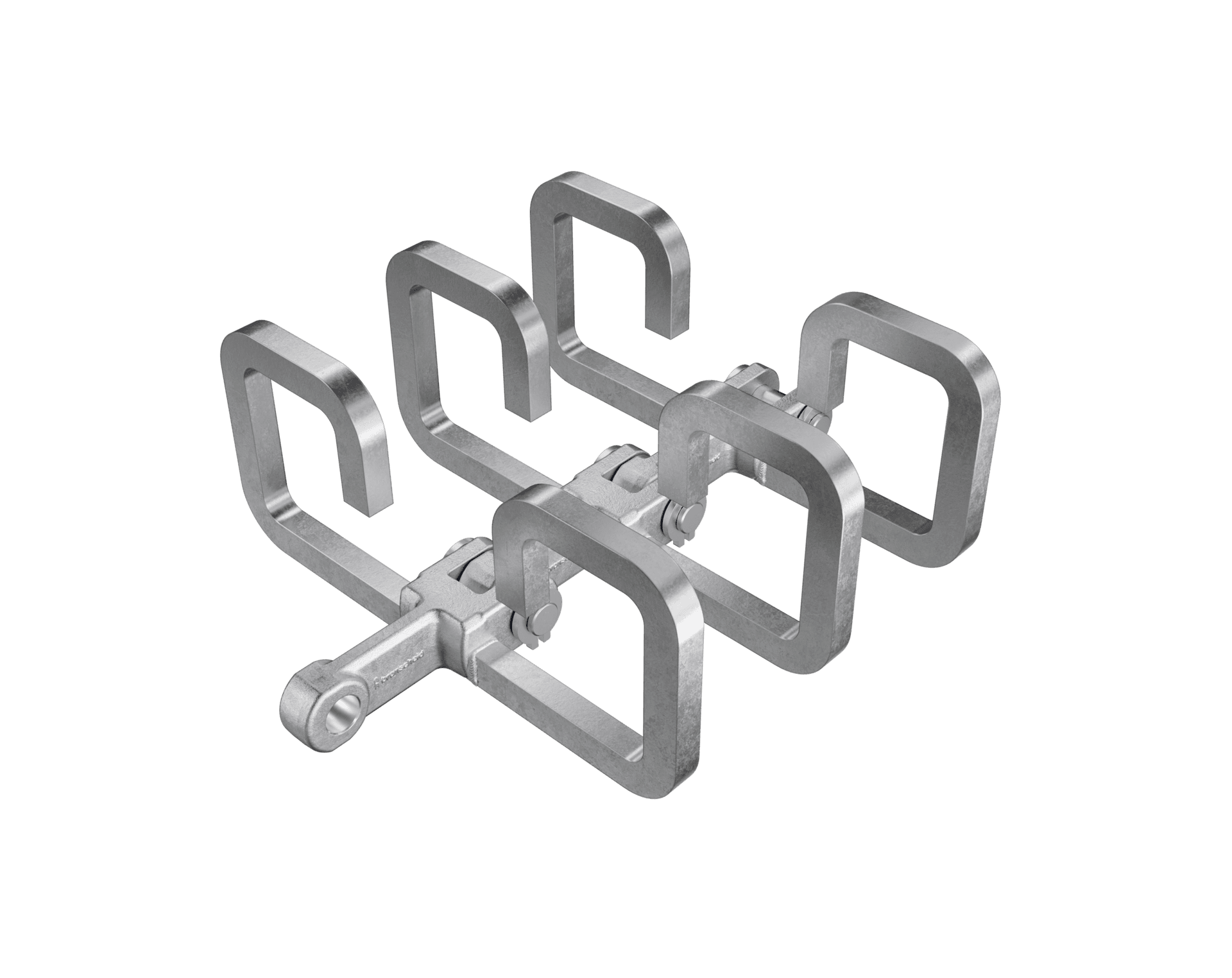

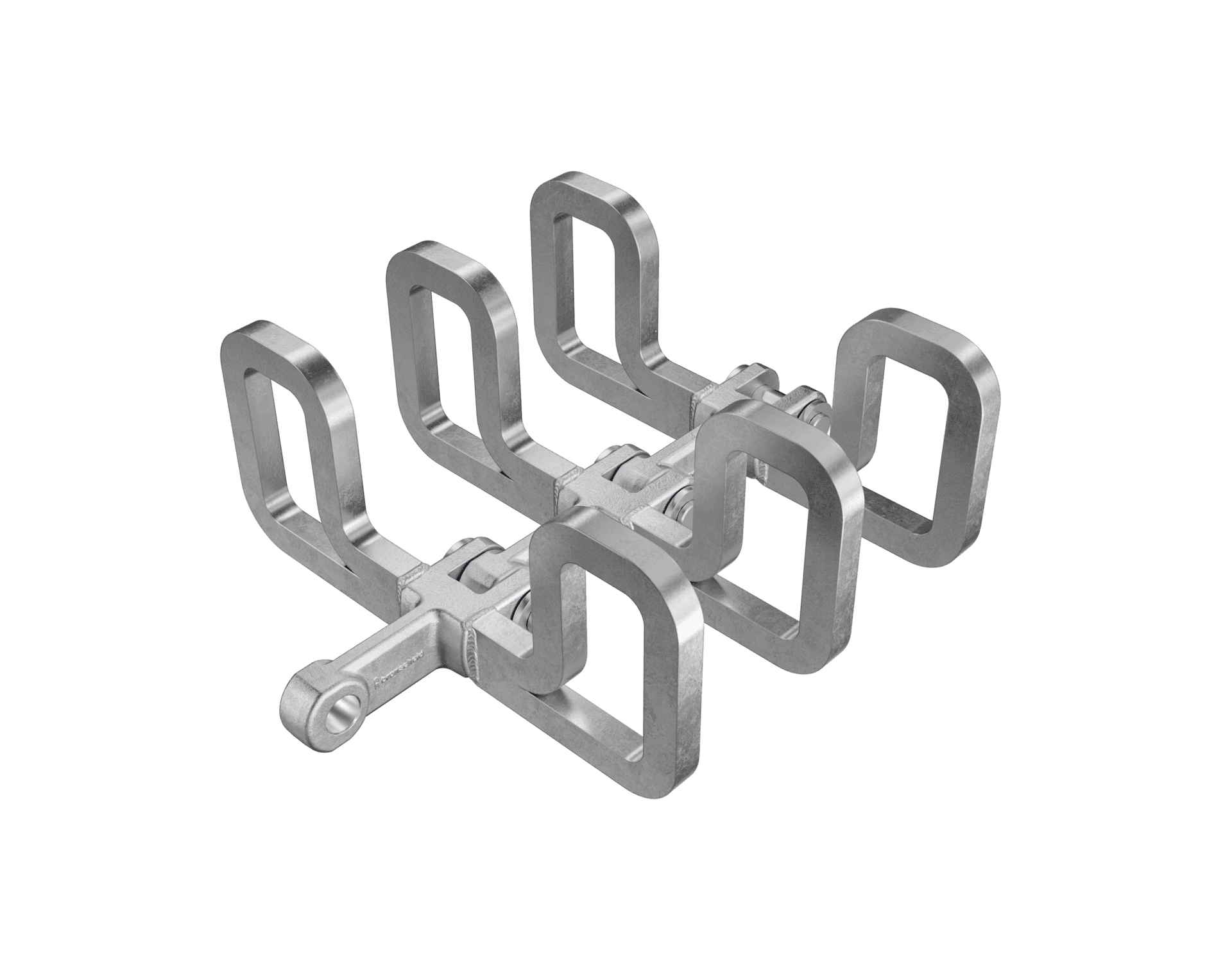

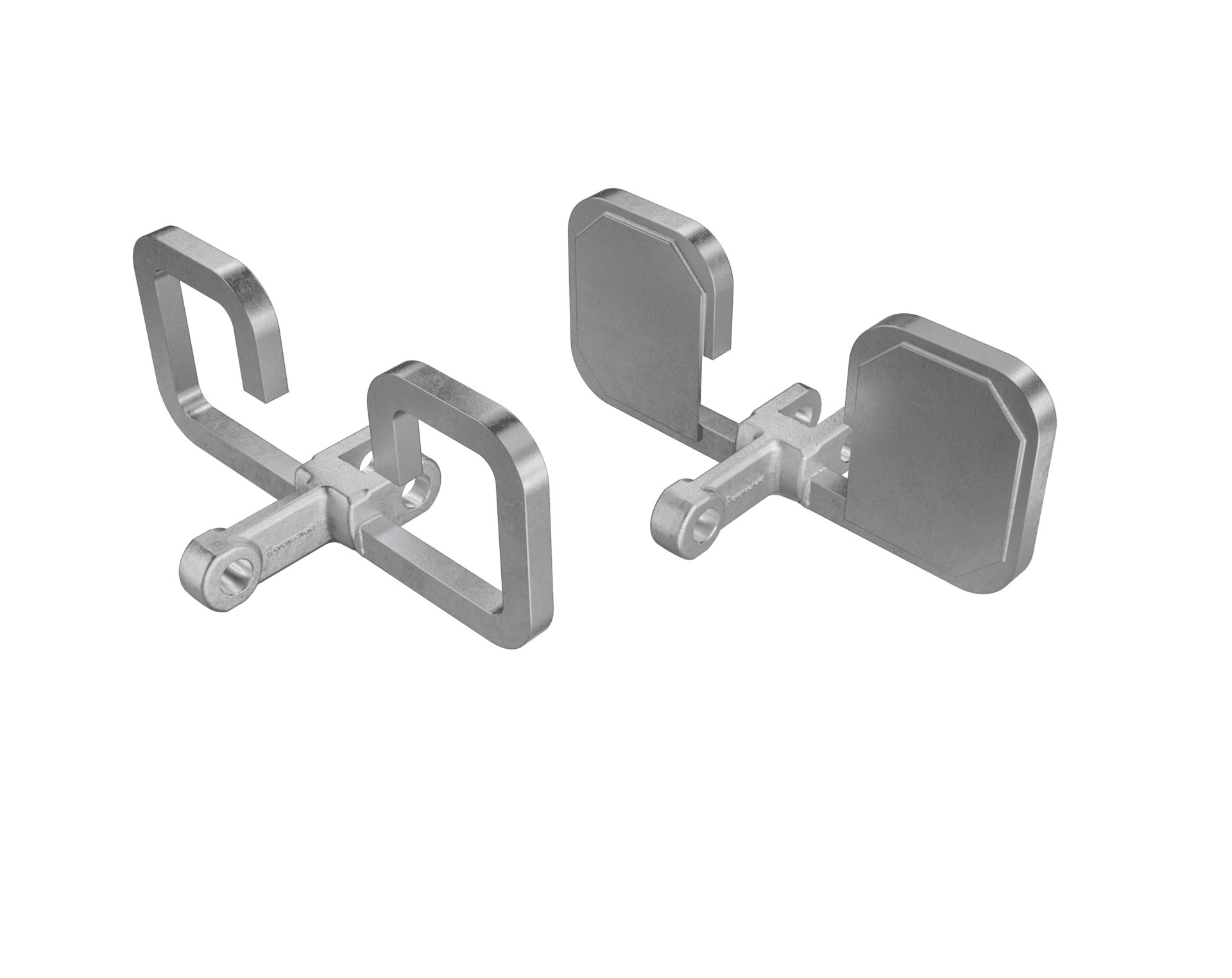

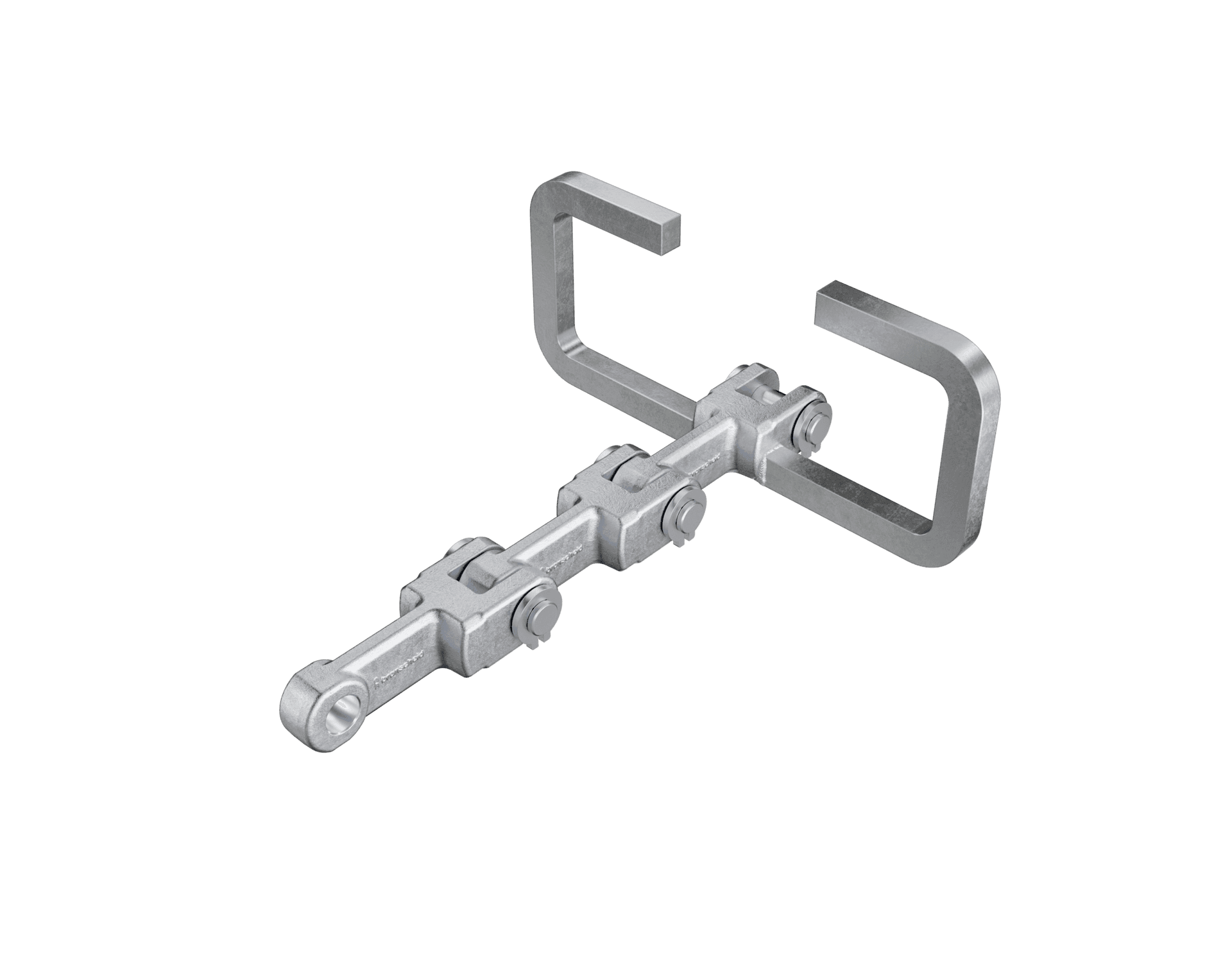

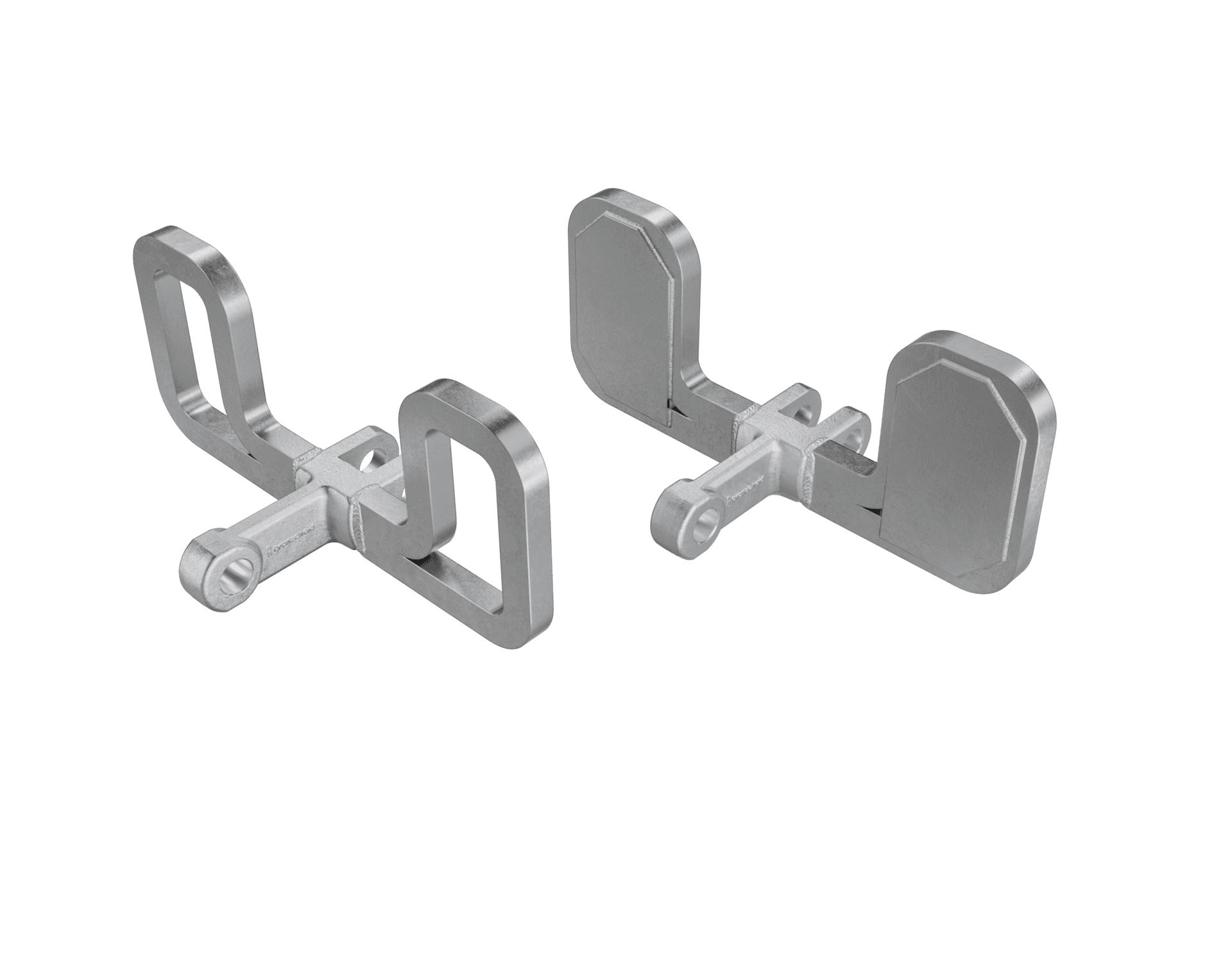

Flight type O / OFL-form
With and without filler plate
Application: Scraper chain for horizontal/vertical conveying
Materials Conveyed: Waste, ash, biomass, wood chips, wood shavings, powders, dust, and other small-particle materials

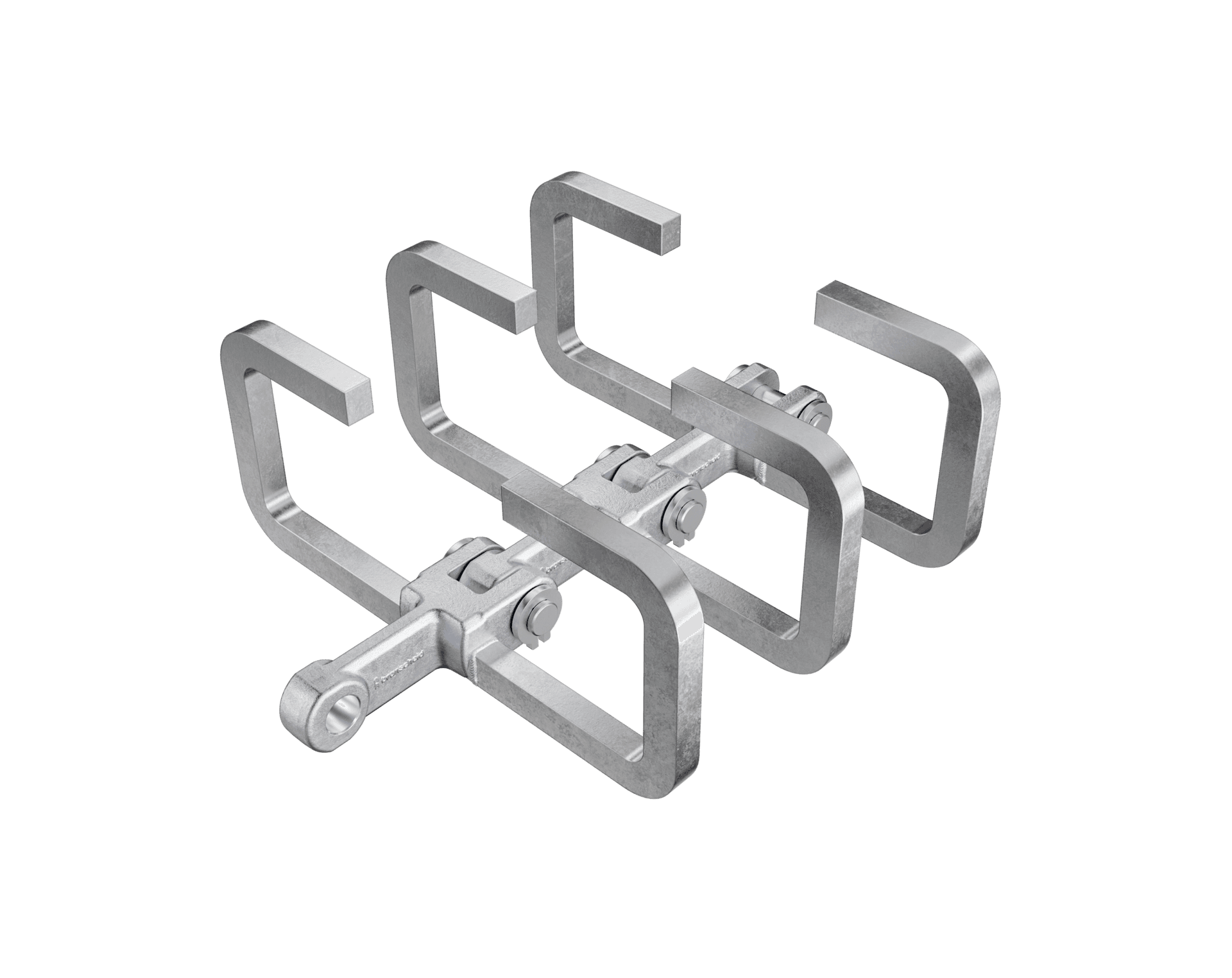

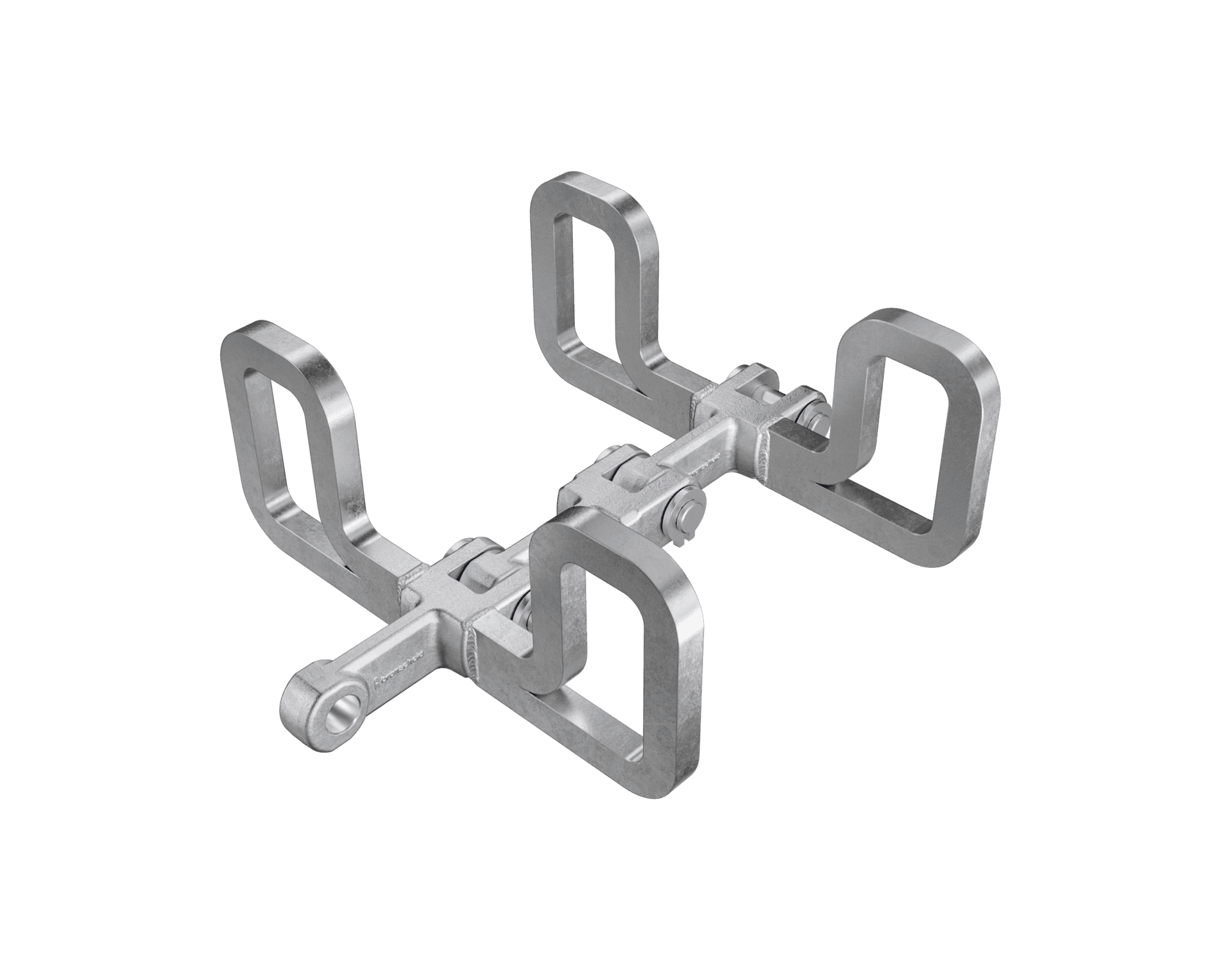

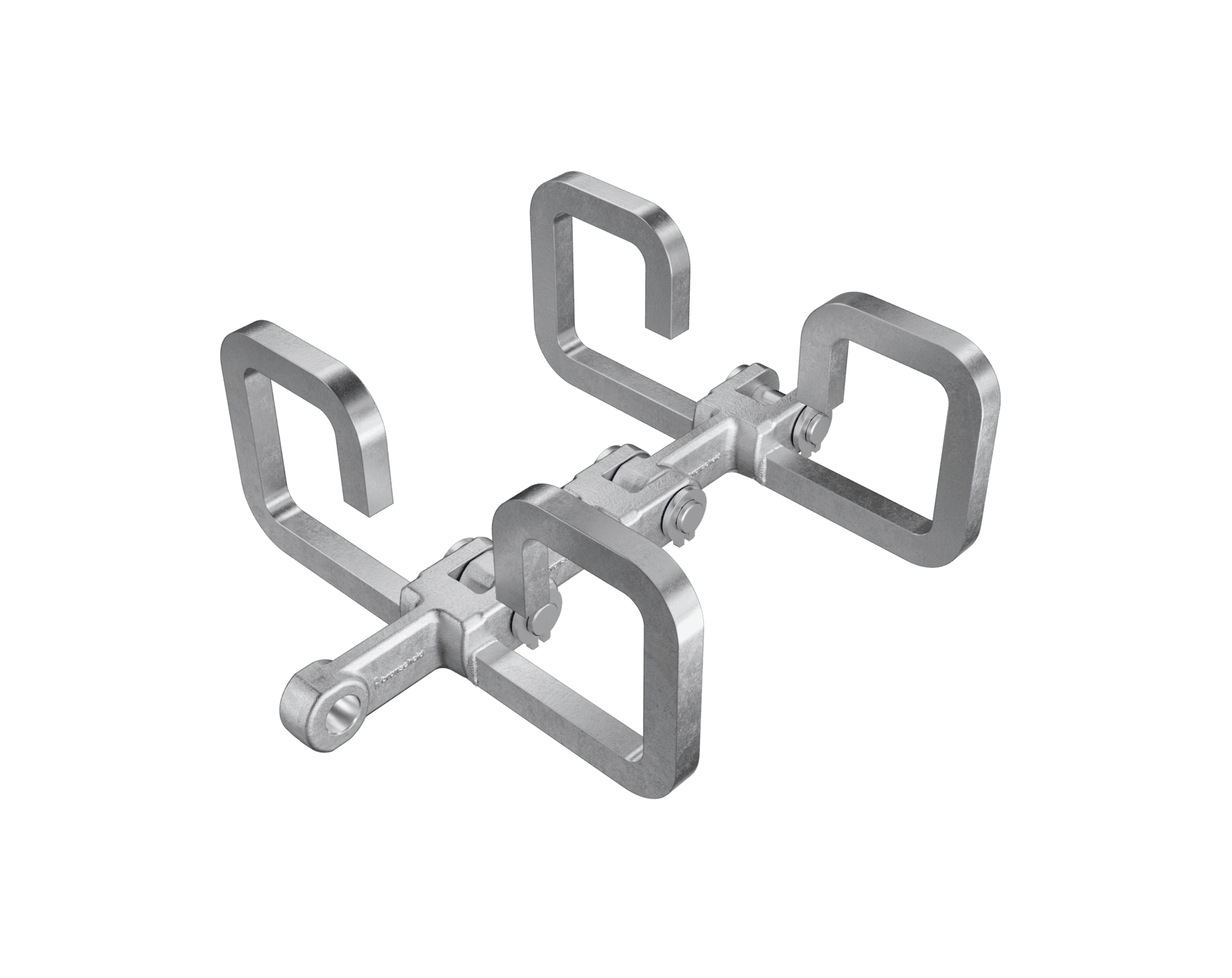

Flight type OO / OOFL-form
With and without a filler plate
Application: Scraper chain for horizontal/vertical conveying
Materials Handled: Waste, ash, biomass, wood chips, wood shavings, powders, dust, and other small-particle materials

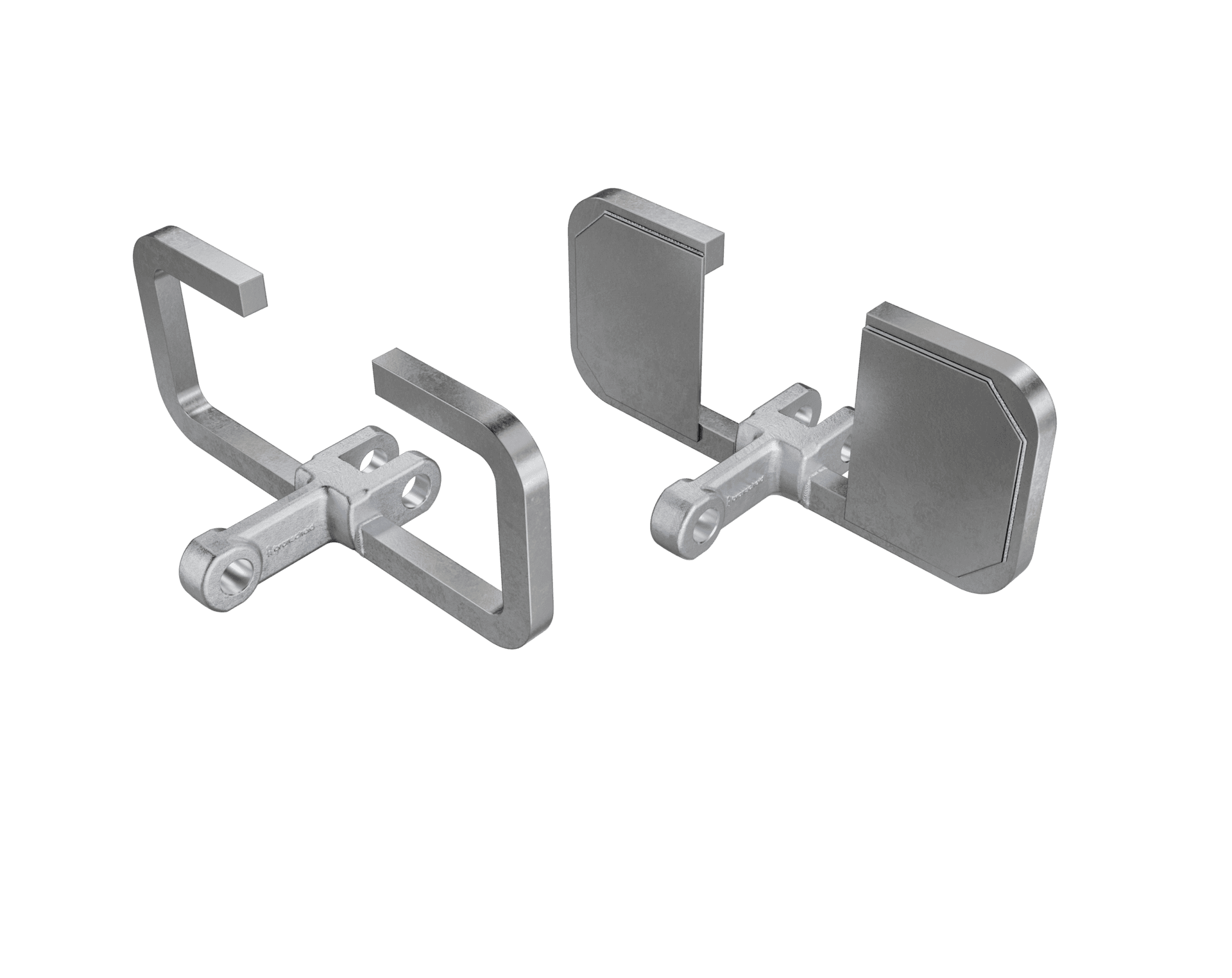

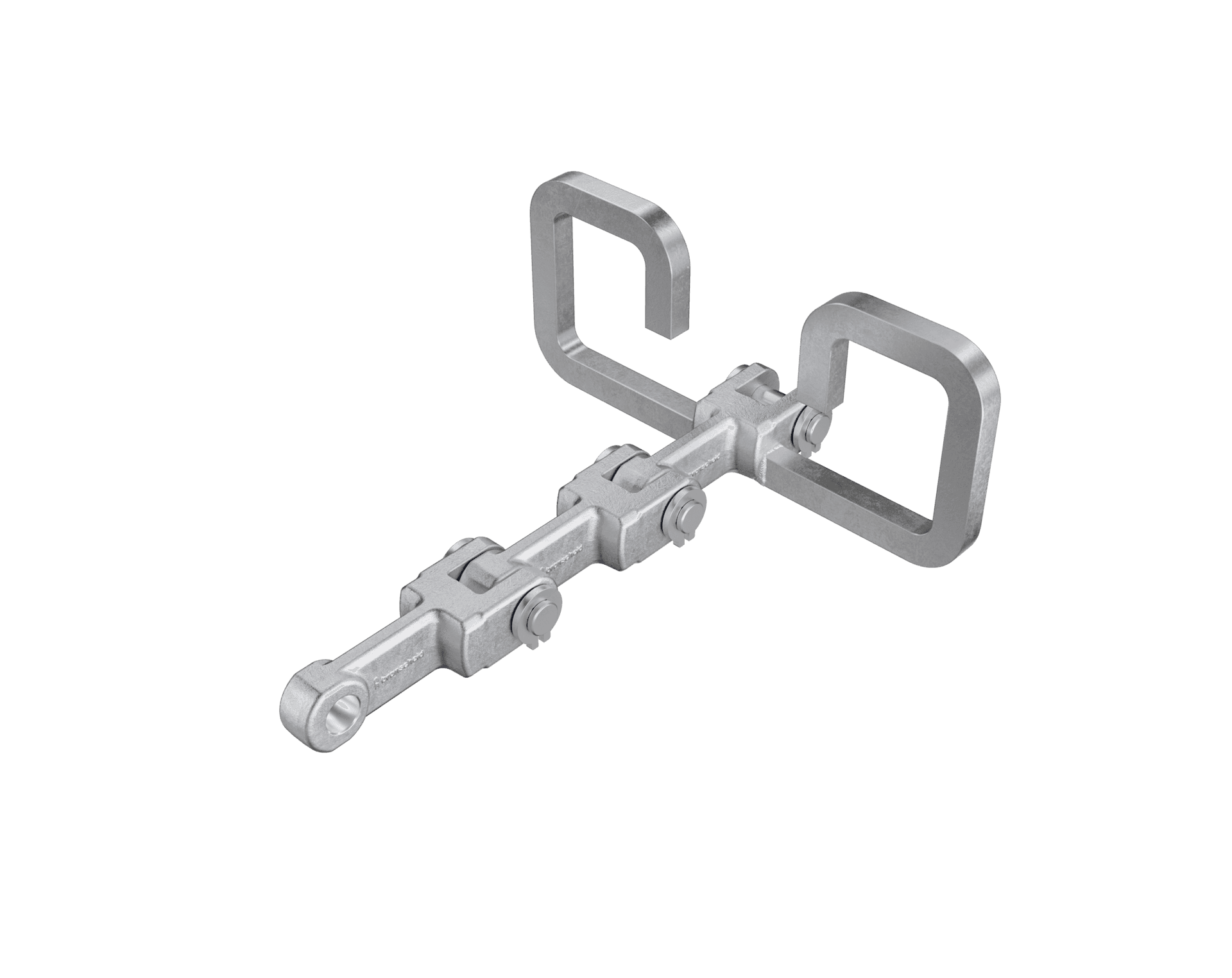

Flight type OOZ / OOZFL-form
With and without a filler plate
Application: Scraper conveyor for horizontal/vertical conveying
Materials Conveyed: Waste, ash, biomass, wood chips, wood shavings, powders, dust, and other small-particle materials

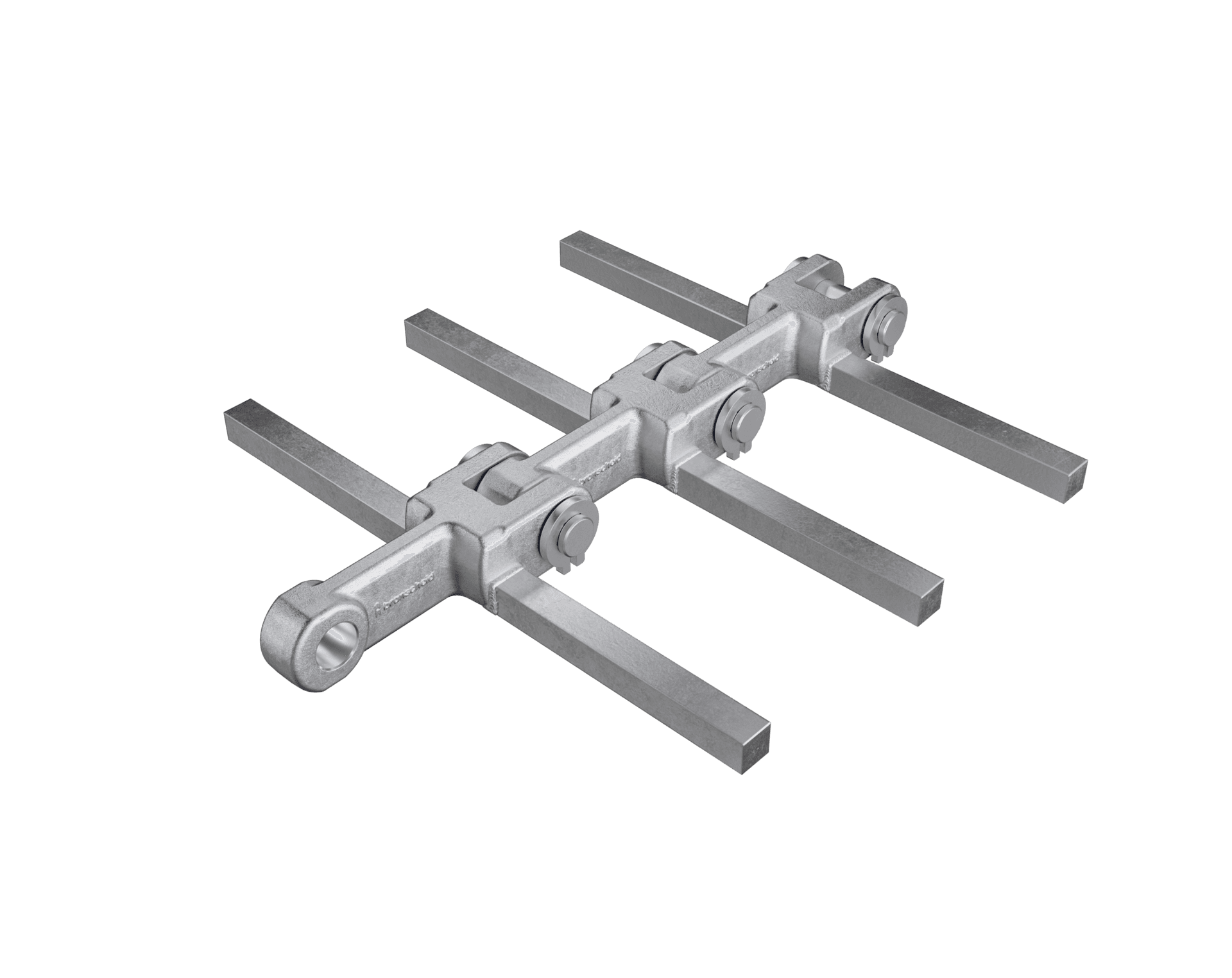

Single-strand chains

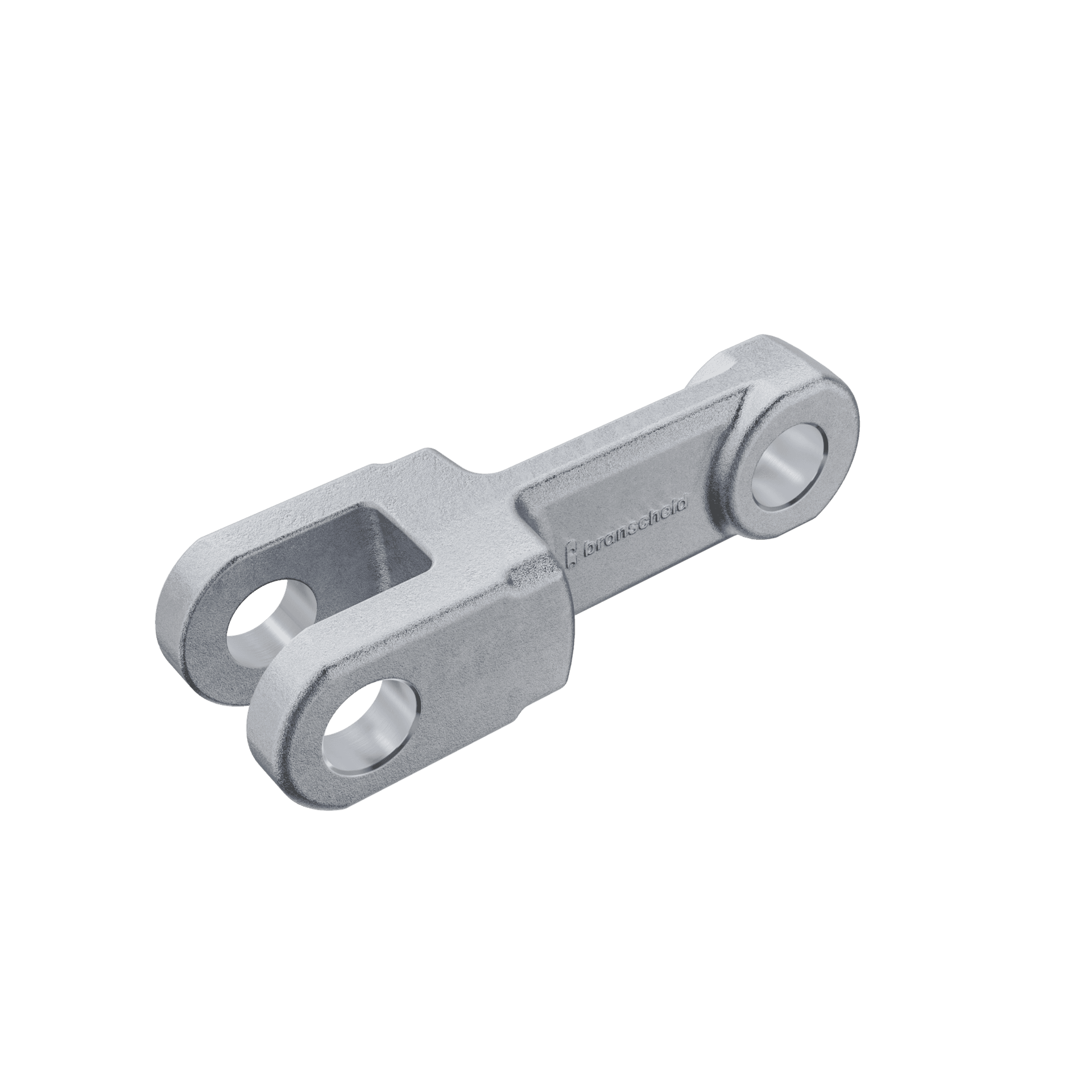

Drop-forged link chains, as single-strand chains, are supplied in pitch sizes ranging from 102 to 315 mm and are always customized, client-specific solutions. The drop-forged links used are forged in-house at the Branscheid Umformtechnik GmbH & Co. KG facility in Gevelsberg.
In addition to short and cost-effective transport routes, our drop-forged links stand out for their exceptional material properties. Thanks to the drop-forged steel and the optimal utilization of the grain flow, the drop-forged links achieve very high tensile strength and are exceptionally robust.
Technical Data & Specifications
We don't shy away from a challenge
Acid-resistant
Corrosion-resistant
Heat-resistant
Abrasion-resistant
sales@branscheid.com+49 2333 98 58 0
Your path to the ideal conveyor chain system
To optimize the welded joint between the drop-forged link and the driver, we use a flash butt welding machine with an integrated deburring device. The flash butt welding process is a computer-controlled welding process with parameter logging. This eliminates any adverse effects on the chain link caused by uneven preheating. The result is a homogeneous material structure and a seamless bond between the drop-forged links and the driver. We also utilize autogenous and inert gas welding techniques. For use in particularly abrasive environments and to ensure a long service life, we reinforce our chain links with high-hardness armor wire.

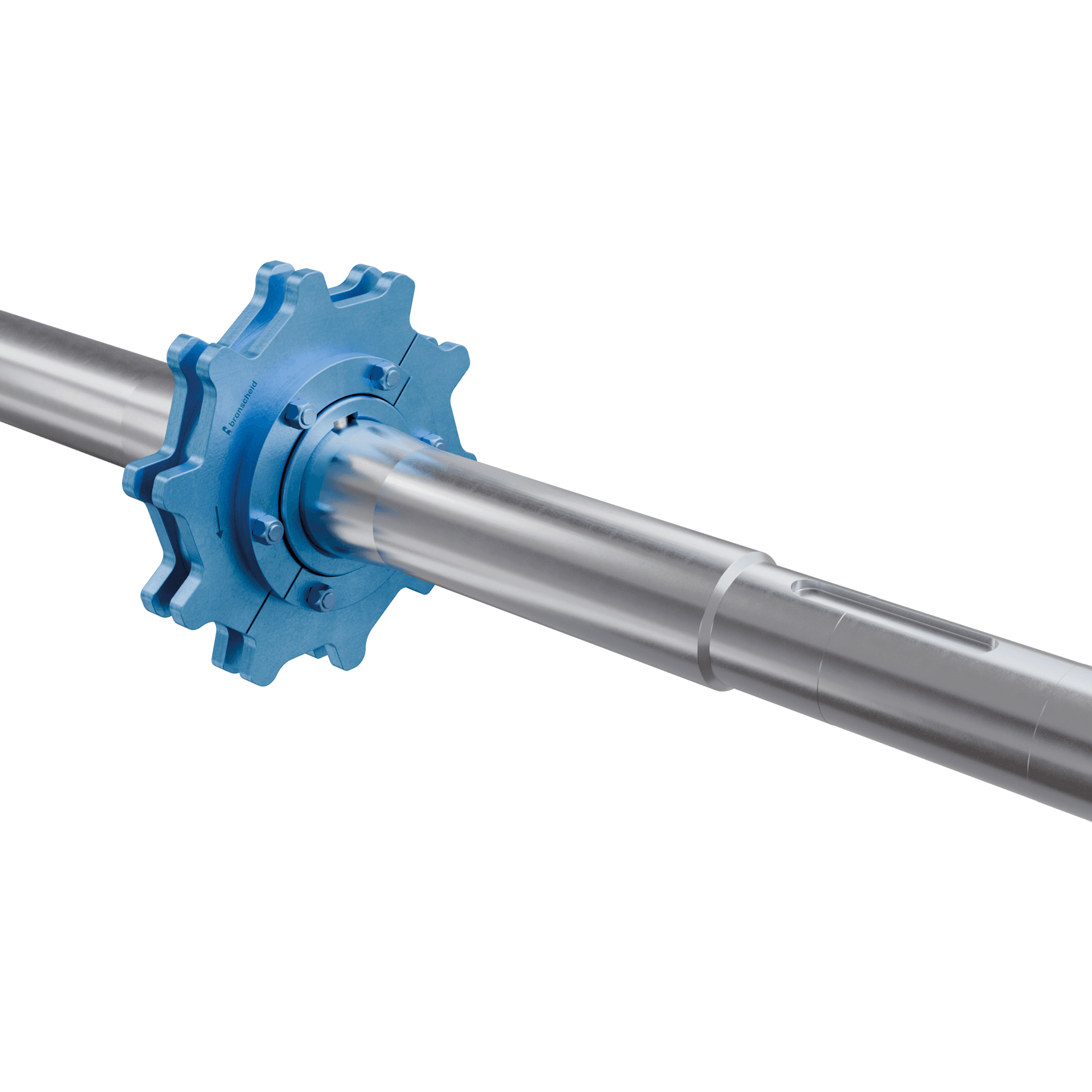

To ensure smooth operation, we also supply sprockets for conveyor chains.
Additional System Components
Thermal Waste-to-Energy
In thermal waste treatment, conveyor systems are a key component for ensuring smooth production processes. Highly functional conveyor chains are essential to enable these systems to move materials and clear away residues effortlessly.
